Ssh Series Screw Dry Vacuum Pump

MOQ : 1

Price : 9250

Contact Now

Welcome to Shanghai Mengsheng Sheng International Trade

Name: SSH series Screw dry vacuum pump

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Description :

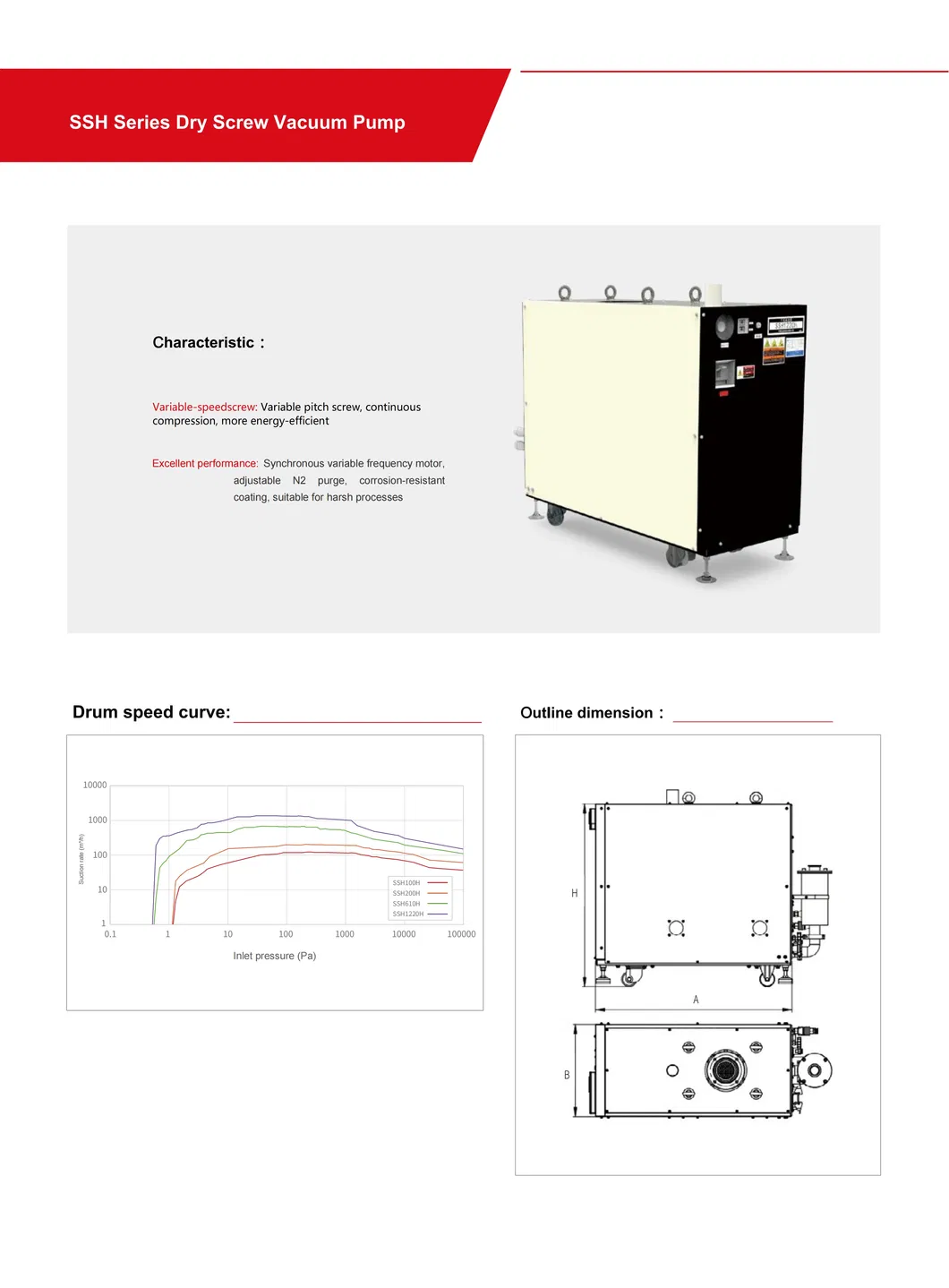

Variable pitch screw: Variable pitch screw, continuous compression, more energy-efficient

Excellent performance: synchronous variable frequency motor, adjustable N2 blowing, corrosion-resistant coating, suitable for harsh processes

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.

Thank you! Have a nice day!

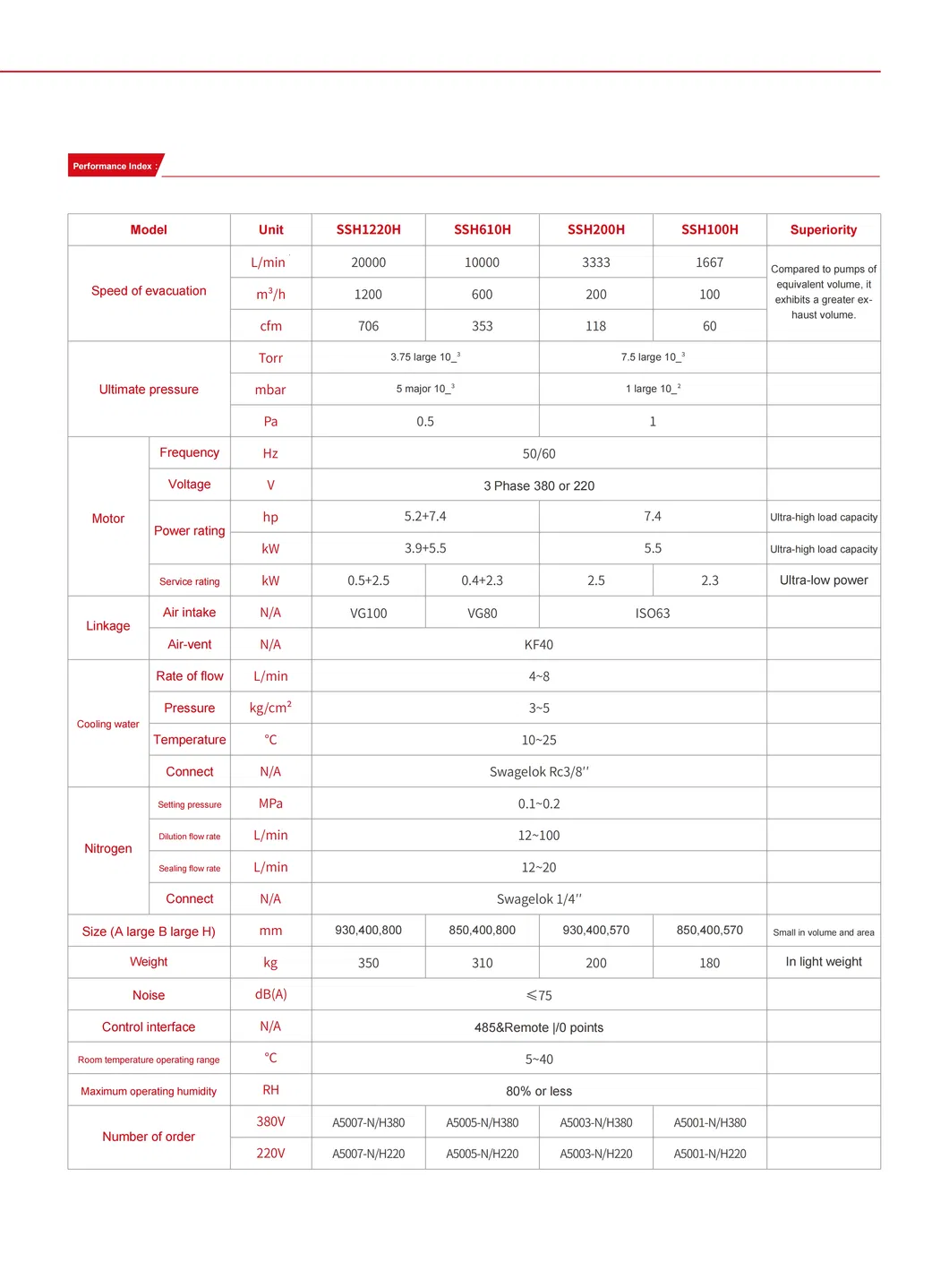

Model		Unit	SSH1220H	SSH610H	SSH200H	SSH100H	Superiority
Speed of evacuation		L/min	20000	10000	3333	1667	Compared to pumps of equivalent volume,it exhibits a greater ex- haust volume.
		m³/h	1200	600	200	100
		cfm	706	353	118	60
Ultimate pressure		Torr	3.75 large 10_3		7.5 large 10_3
		mbar	5 major 10_3		1 large 10_²
		Pa	0.5		1
Motor	Frequency	Hz	50/60
	Voltage	V	3 Phase 380 or 220
	Power rating	hp	5.2+7.4		7.4		Ultra-high load capacity
	Power rating	kW	3.9+5.5		5.5		Ultra-high load capacity
	Service rating	kW	0.5+2.5	0.4+2.3	2.5	2.3	Ultra-low power
Linkage	Air intake	N/A	VG100	VG80	ISO63
Linkage	Air-vent	N/A	KF40
Cooling water	Rate of flow	L/min	4~8
	Pressure	kg/cm²	3~5
	Temperature	ºC	10~25
	Connect	N/A	Swa-gelok Rc3/8"
Nitrogen	Setting pressure	MPa	0.1~0.2
	Dilution flow rate	L/min	12~100
	Sealing flow rate	L/min	12~20
	Connect	N/A	Swa-gelok 1/4"
Size(A large B large H)		mm	930,400,800	850,400,800	930,400,570	850,400,570	Small in volume and area
Weight		kg	350	310	200	180	In light weight
Noise		dB(A)	≤75
Control interface		N/A	485&Remote \|/0 points
Room temperature operating range		ºC	5~40
Maximum operating humidity		RH	80%or less
Number of order		380V	A5007-N/H380	A5005-N/H380	A5003-N/H380	A5001-N/H380
Number of order		220V	A5007-N/H220	A5005-N/H220	A5003-N/H220	A5001-N/H220
