Boundary dimension 59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included)
Weight <250g
Working temperature 0~50
Working humidity 20~80% (No Condensation)
Storage temperature -30~60
Storage humidity 20~95% (No Condensation)
Operatingsystem WindowsXP/7/8/10/1132-bitand64-bit systems,Linux32-bit and64-bit systems, ARM Linuxsystems,Android systems,andMACsystems
Drive program Support GigE Vision protocol software, DirectShow components, Halcon dedicated components, LabVIEW dedicated drivers, OCX components, and TWAIN components
Programming language C/C++/C#/VB6/VB.NET/D e l p h i/BCB/Python/Java
Other functions Support any size ROl custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LuT table, frame rate adjustment, custom camera name, etc.
Port A
Green
GPO_1 positive end/flash output positive end
GPO_1+/STRB_OUT+
Default to flash output
GPO_1 negative end/flash output negative end
Yellow
GPO_1-/STRB_OUT-
Default to flash output
White
GPI_1 positive end/Trigger input positive end
GPI_1+/TRIG_IN+
Default to trigger input
GPI_1 negative end/Trigger input negative terminal
Brown
GPI_1-/TRIG_IN-
Default to trigger input
Red
DC12V+
Camera power input negative terminal
Black
GND
Camera power input negative terminal
Port B
Green
GPO_2+
GPO_2 positive end output
Yellow
GPO_3+
GPO_3 positive end output
White
GPO_4+
GPO_4 positive end output
Brown
GPI_2+
GPI_2 positiveinput
Red
GPI_3+
GPI_3 positive input
Black
I0_COM
GPIO common negative terminal

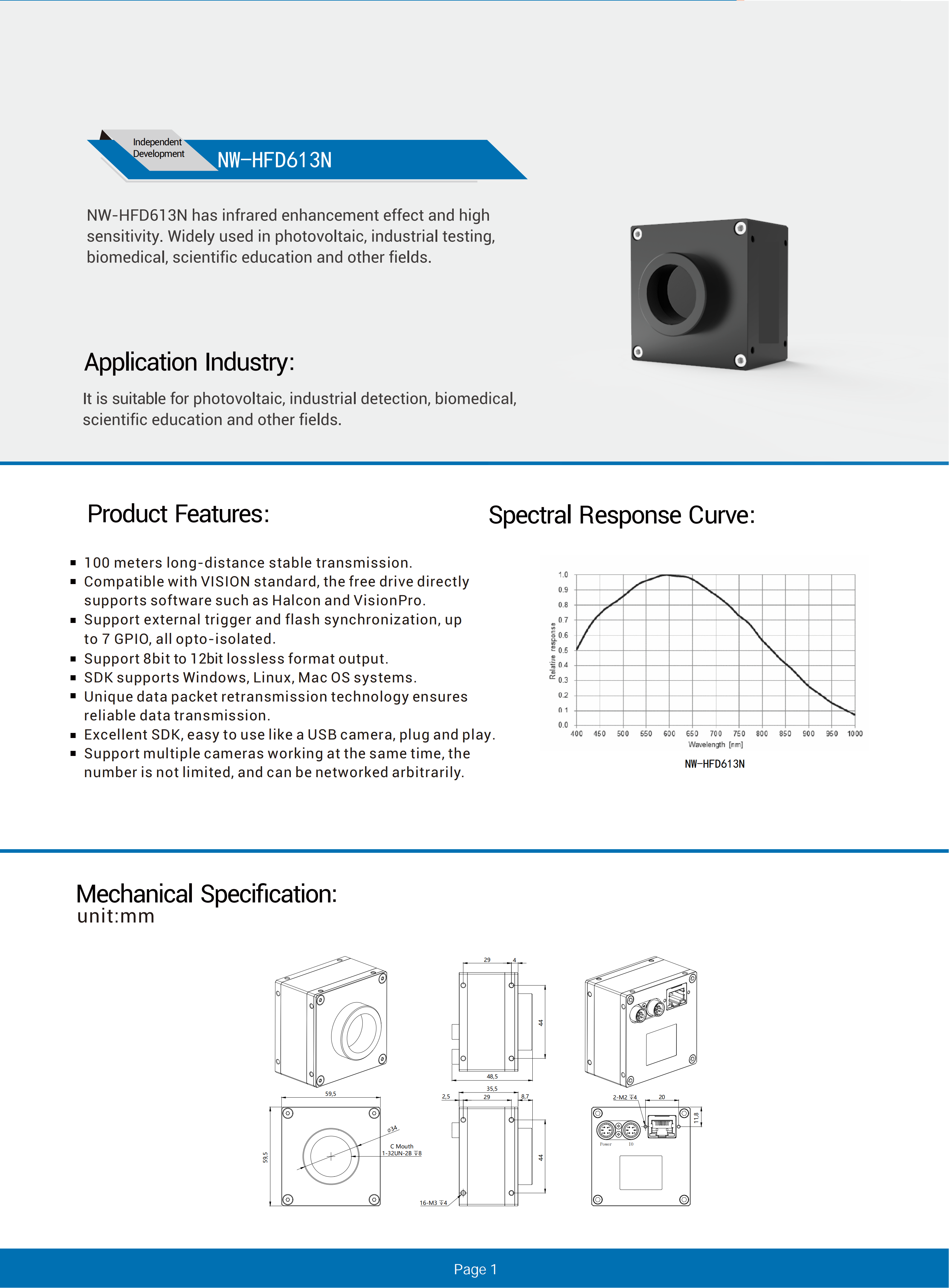

Product Features: 100 meters long-distance stable transmission. Compatible with viSioN standard, the free drive directly supports software such as Halcon and VisionPro. Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.
Support 8bit to 12bit lossless format output. SDK supports Windows, Linux, Mac OS systems. Unique data packet retransmission technology ensures reliable data transmission.
Excellent SDK, easy to use like a USB camera, plug and play Support multiple cameras working at the same time, the number is not limited, and can be networked arbitrarily.
